American Book Returns HCU Through Wall - Head and Chute for Books

Wall depth measurement is needed at the time of the order.

Includes:

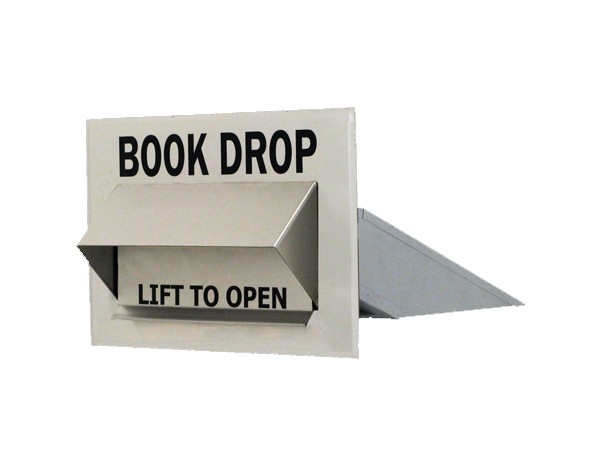

• Model HCU - Head and Chute for Books
  • Stainless Steel Head is 22" x 14" tall and has a protective rainshield and liftplate or push plate
  • 6 threaded studs are welded on back to fasten securely to delivery chute flange.
  • Delivery Chute is powder coated steel and secured with lags driven through pre-drilled holes on each side of the chute. A hinged, weatherized baffle is installed in the chute to prevent phishing and energy loss.
  • Chute Opening Size (W x H): 13 1/2" x 3 1/2"
  • Attention Contractor: rough opening for delivery chute installed is 16" x 9" tall. Wall depth measurement is needed at the time of the order. Install in accordance with your state and local fire codes.
• Signs
  • 2 Black signs: "BOOK DROP" and "LIFT TO OPEN"

Options:

• Lockable Lift Plate
  • Lock bar, padlock and 2 keys.
• Stainless Steel Backer Plate
  • For mounting the faceplate through glass. Backer plate has pre-drilled holes and slot to match faceplate. Includes weather stripping between faceplate and backer plate for clasping to the window pane
